Product Description

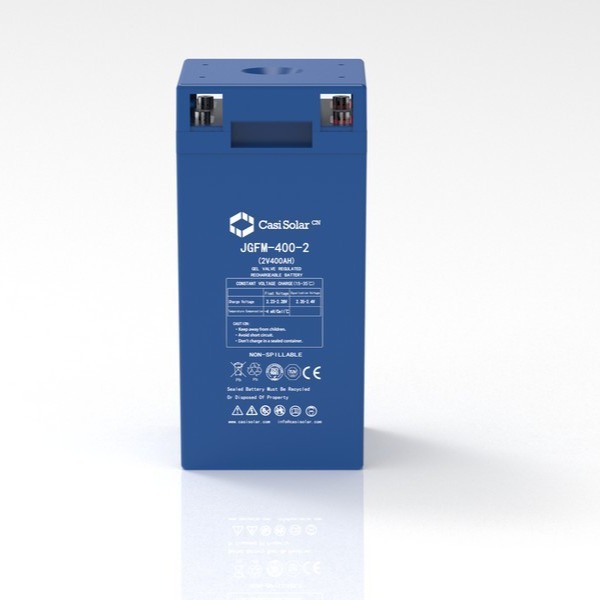

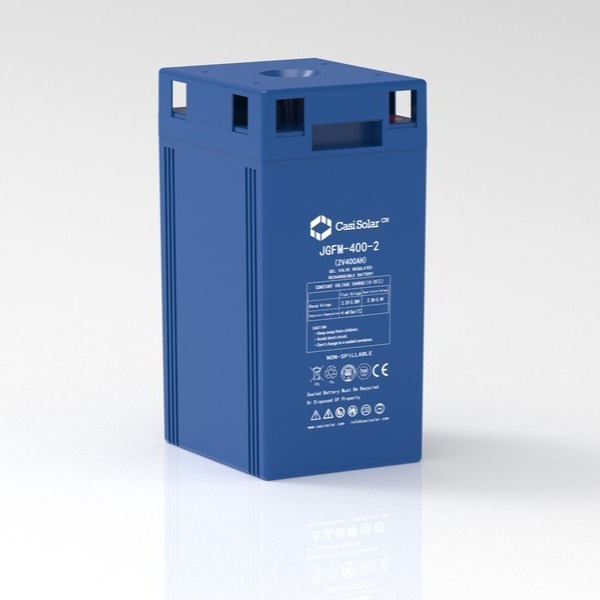

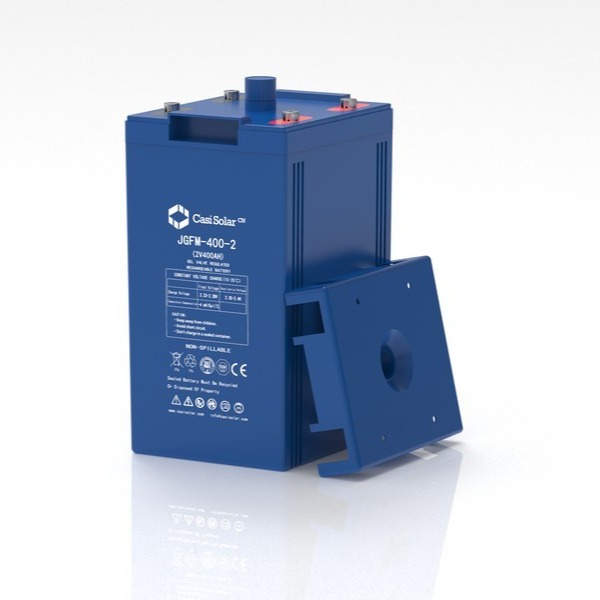

Copper Terminal 2v 400ah Solar Battery AGM Sealed Lead Acid Battery
The CASISolar‘s 2v 400ah Solar Battery is designed for frequent cyclic charge and discharge applications under extreme environments. By combining the newly developed Nano Silicone Gel electrolyte with a high-density paste, the Solar range offers high recharge efficiency at a very low charge current. The acid stratification is highly reduced by adding Nano Silicone Gel.
Technical Data Of 2v 400ah Solar Battery
| Product Name |
2v 400ah Solar Battery |
| Reted Voltage |
2V |
| Capacity(10hr) |
400ah |
| N.W. |
25Kg |
| Size(H*L*W) |
211*176*367mm |
| Max.Discharge Current |
30I10A (3min) |
| Self-Discharge(25℃) |
<3%/month |
| Designed life |
10-12 Years |
| Using Temperature |
Discharge: -45℃～50℃
Charge: -20℃～45℃
Storage: -30℃～40℃
|
|
Recommended Using
Temperature
|
15℃～30℃ |
| Charge Voltage (25℃) |
Float Charge: 13.5V-13.8V
Average Charge: 14.4V-14.7V
|
| Max.Charge Current |
≤0.25C10 |
| Charge Mode(25℃) |
Float Charge:13.65±0.15V/Cell
Temperature Compensation Coefficient :± 18 mV/Cell ℃
Cycle Charge:14.7±0.3V/Cell
Temperature Compensation Coefficient: ± 30 mV/Cell ℃
|
| Cover Material |
ABS Engineering Plastic |
| Cycle life |
105 % @ 40℃
|
| DOD cycle |
100%DOD 572times
50%DOD 1485 times
30%DOD 2406times
|
| Warranty |
3 Years |
Features of 2v 400ah solar battery
|
From material selection to delivery
We master the entire production process and
strictly control the quality of each component to ensure quality.
|
 |
|
Purest lead ingot
Lead ingot: Pb-1
Lead content ≥ 99.994%
|
|
Electrolyte
The electrolyte of Casisolar’s 2v 400ah Solar Battery use patented formula and the main component of nano-gelled imported from German, which has the consistency and appearance of petroleum jelly. Nano gel helps batteries have stable performance at high and low temperature and 5 years longer than AGM battery.
|
|
|
Plate
The plate of Casisolar’s 2v 400ah Solar Battery is usually thicker, pasted flat type with patent formula ensure stronger ability to recover from deep discharging. This also do a great help of batteries service for two years longer.
|
|
Grid
Casisolar’s 2v 400ah Solar Battery use special design of radioactive grid structure, lead-tin alloy helps greater ability of anti-corrosion. This help our batteries service two years longer and other gel. Batteries..
|
|
|
Separator
You will always find that the separator in our 2v 400ah Solar Battery is in double quantity, the material should be updated long and superfine fiber separator with higher absorptive and lower resistance, which helps batteries service longer.
|
NOTE
· We recommend only using consistent battery types. DO NOT mix new and used batteries together as it will reduce overall performance .
· To avoid cycle-life shortening, we recommend not discharging the battery below 40%.
· It is highly recommended to use a battery balancer to extend the battery service life when multiple batteries are connected in series and/or in parallel.
· We highly recommend installing the battery upright. It is allowed to install the battery on its side only if there are special reasons for doing so.
DO NOT install the battery upside down.
If you have any questions regarding this product, please call us at +86 29 88819394 or or info@casisolar.com for troubleshooting assistance.
PACKAGE INCLUDES
| 2V 400ah Deep Cycle Gel Battery (1x) |
M8 Terminal Bolts(2 x) |
Manual(1x) |
|
|
|
FAQ
1. How many life cycles does this GEL battery have?
This CASISolar 2v 400ah Solar Battery enables more than 1000 charge/discharge cycles at 50% DOD (Depth of Discharge) in cyclic applications.
2. Will the battery come with the terminals? And if not, what's the size of the connector terminals?
Yes, it comes with two copper screw terminals. The size is M8 x 1.25 x 16 mm.
3. Can your gel battery be charged by e-bike charger with AC?
Depends. The charging current should be less than 0.25C10. For example 25A is the max for 12V100AH battery. So only chargers within the permissible voltage range can be used.
4. How to properly store the Gel battery?
Store it in a dry and cool place at -30℃~50℃. Charge it to full before delivery and recharge after three months.
5. How can I fix this GEL battery if I over discharged it?
It can be restored to normal voltage and continues to operate normally through low-current charging. Please note that frequent over-discharge may cause irreversible damage to the battery's life. To avoid cycle-life shortening, we recommend not discharging the battery below 40%. You can contact us to make sure your system working in balance, info@casisolar.com.
