48volt Solar Battery 100ah Lithium Battery

Minimum Order Quantity : 1 piece Price : Negotiable
Packaging Details : According to customer's requirement Delivery Time : 15-20 working days
Payment Terms : T/T, Western Union, L/C Supply Ability : 1000 pcs per week
Place of Origin: China Brand Name: Licloud
Certification: CE/ROHS Model Number: LFP48100

Detail Information

Product Name: Energy Storage Lithium Battery Standard Voltage: 48 Volt
Battery Capacity: 100 Ah Cycle Life: 6000times
Dimensions: 482*400*177mm Weight: 45.0kg
Application: Energy Storage System Battery Type: LiFePO4 Lithium Battery
BMS Protection: Yes Working Temperature: -10℃~50℃
High Light:

100ah Backup solar battery


48volt solar battery


48volt 100ah lithium battery

Product Description

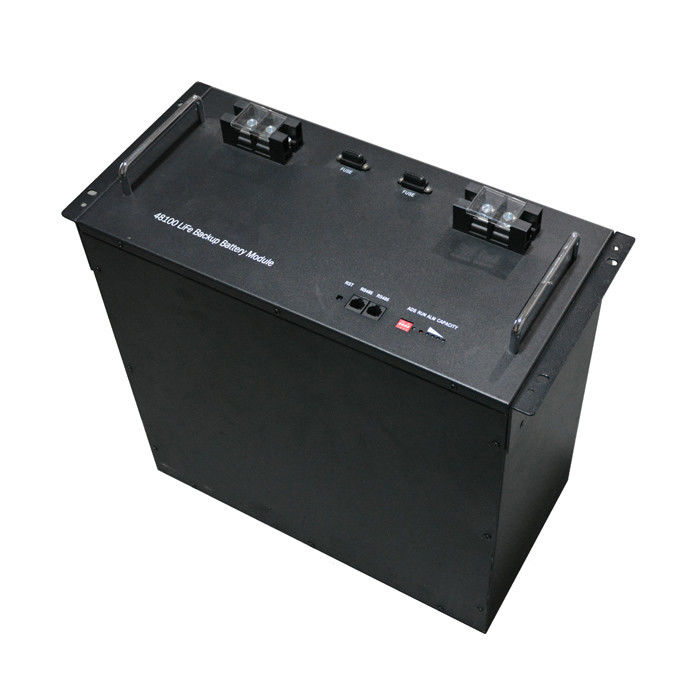

Energy Storage Lithium Battery 48volt 100ah 4800WH Solar System Backup Battery



The communication equipment required by telecom operators tends to be integrated, miniaturized and lightweight. That is, more service equipment can be installed in a limited space. Higher requirements are put forward for their use of temperature range, specific energy, and lifetime.


Model of battery pack CI48V 100AH -4800WH
Nominal voltage 48V
Rated capacity 100AH
Rated reserved energy 4800WH
Standard charging current 0.3C
Maximum continuous charging current 0.5C
Minimum continuous charging current 0.1C
Total charging cut-off voltage 58.4V
Cut-off voltage of charging monomer 3.65V
Standard discharging current 0.5C
Maximum continuous discharging current 1C(100A)
Cut-off voltage of discharging monomer 2.5V
Charging temperature range -5℃~55℃
Discharging temperature range -20℃~65℃
Dimension (W×D×H) 482*400*178mm
(excluding hanger and amphenol connector)
Weight 45kg
Compound mode 15 strings 1parallel
Storage temperature -20℃~45℃
Differential pressure Differential pressure at the discharging end (2.5V for monomer) ≤300mV
Differential pressure at the charging end (3.65V for monomer)≤300mV



48volt Solar Battery 100ah Lithium Battery 0


Product Features

  • Product Name: Energy Storage Lithium Battery
  • Monitoring unit automatically measures the charge and discharge current, charge and discharge voltage, single cell surface temperature and ambient temperature of the battery.
  • Secondary power down function, with alarm information when the battery voltage is lower than the alarm value, and automatic power down when the voltage is too low to protect the battery.
  • Good electromagnetic compatibility of the system.
  • Fully intelligent design, configured with a centralized monitoring module, with four to (telemetry, telematics, remote control and remote control) functions, to achieve computer management, which can be communicated with the remote central monitoring center.

Main Advantages

  • Product Name: Energy Storage Lithium Battery
  • Attractive Design: 48V lithium battery has compact design, convenient setting buttons, and cables&accessories ready for installation. To welcome the world cooperation we accept OEM with your logo design!
  • Wide Application: 48V lithium Ion battery series are widely used in Solar Systems for residential and commercial use. With more than 6000 times deep cycle, up to 80% DOD and phosphate battery Cell, 48V lithium battery has won global approval!
  • Good safety performance: In the ultimate safety performance test, the battery does not catch fire, does not explode, no liquid leakage, safer to use.


  • Home Energy Storage
  • Industrial Energy Storage
  • Wind power system
  • Outdoor Macro Stations

Production Process

  • Li-ion battery cell sorting cabinet: all incoming cells are subjected to secondary sorting to ensure the full capacity of the battery.
  • Sorting pairing: each cell is sorted to ensure the consistency of the voltage and internal resistance of the cells in the same battery pack, which effectively improves the stability of the battery.
  • Automatic spot welding: Use automatic spot welding machine to spot weld the positive and negative electrodes of the battery pack, which is efficient and stable without desoldering.
  • Welding BMS: Welding and installing BMS for each battery pack, which can protect the overcharge, overdischarge, overcurrent and overvoltage.
  • Finished product testing: The finished battery finally needs to go through a number of tests to confirm that the performance is stable and meets the standards before it is packaged and shipped.
