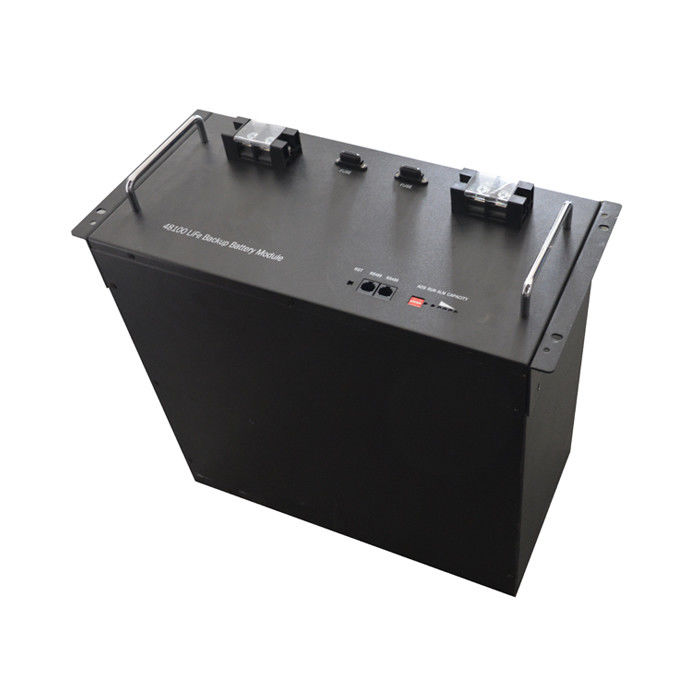

4800WH Energy Storage Lithium Battery Lifepo4 100A

Minimum Order Quantity : 1 piece Price : Negotiable
Packaging Details : According to customer's requirement Delivery Time : 15-20 working days
Payment Terms : T/T, Western Union, L/C Supply Ability : 1000 pcs per week
Place of Origin: China Brand Name: Licloud
Certification: CE/ROHS Model Number: LFP48100

Detail Information

Product Name: Energy Storage Lithium Battery Standard Voltage: 48v
Battery Capacity: 100Ah Charging Current: 50 Amp
Dimensions: 482*400*177.8mm Weight: 45kgs
Application: UPS Battery Type: LiFePO4
Warranty: 5 Years Design Life: 10 Years
High Light:

4800WH Energy Storage Lithium Battery


100A Energy Storage Lithium Battery


100A lifepo4 lithium battery

Product Description

Energy Storage Lithium Battery 48v 100ah Excellent Performance



With the advantage of low noise, UPS energy storage lithium battery system can also be deployed in environments where silence is required. The cabinets are fully integrated, equipped with temperature sensors and system monitoring modules for a small footprint and flexible configuration, making them ideal for a variety of commercial and industrial applications.

The 48V energy storage lithium battery, compared with lead-acid batteries, has the advantages of small size, light weight, strong temperature adaptability, high charging and discharging efficiency, safety and stability, long service life, energy saving and environmental protection.


Model of battery pack CI48V 100AH -4800WH
Nominal voltage 48V
Rated capacity 100AH
Rated reserved energy 4800WH
Standard charging current 0.3C
Maximum continuous charging current 0.5C
Minimum continuous charging current 0.1C
Total charging cut-off voltage 58.4V
Cut-off voltage of charging monomer 3.65V
Standard discharging current 0.5C
Maximum continuous discharging current 1C(100A)
Cut-off voltage of discharging monomer 2.5V
Charging temperature range -5℃~55℃
Discharging temperature range -20℃~65℃
Dimension (W×D×H) 482*400*178mm
(excluding hanger and amphenol connector)
Weight 45kg
Compound mode 15 strings 1parallel
Storage temperature -20℃~45℃
Differential pressure Differential pressure at the discharging end (2.5V for monomer) ≤300mV
Differential pressure at the charging end (3.65V for monomer)≤300mV



4800WH Energy Storage Lithium Battery Lifepo4 100A 0


Product Features

  • Product Name: Energy Storage Lithium Battery
  • Low self-discharge rate, ≤ 2% per month, no memory effect
  • Light weight, 2~3 times the energy ratio of traditional lead-acid battery
  • Simple installation, the battery pack can be installed in a standard 19-inch cabinet or wall-mounted
  • In terms of interface design, all wiring harnesses are chosen to be plugged in, easy to install
  • Small size, volume specific energy is about 2 times of ordinary lead-acid battery

Main Advantages

  • Product Name: Energy Storage Lithium Battery
  • Lithium iron single cell battery with fully sealed structure, the battery can be placed at will, no harmful gas emissions, safe and pollution-free, a green product.
  • Lithium iron battery has superior multiplier discharge performance, can use lower capacity lithium iron battery system to meet the use of high current discharge occasions.
  • Flexible configuration: multiple LiFePO4 modules are used in parallel, which makes it possible to enter the practical application of large-capacity communication Li-ion battery system, that is, to improve the output power of the system and extend the backup time of the system


  • Mountain communication base station
  • Communication base station energy storage
  • Backup power
  • Outdoor Microstation

Production Process

  • Li-ion battery cell sorting cabinet: all incoming cells are subjected to secondary sorting to ensure the full capacity of the battery.
  • Sorting pairing: each cell is sorted to ensure the consistency of the voltage and internal resistance of the cells in the same battery pack, which effectively improves the stability of the battery.
  • Automatic spot welding: Use automatic spot welding machine to spot weld the positive and negative electrodes of the battery pack, which is efficient and stable without desoldering.
  • Welding BMS: Welding and installing BMS for each battery pack, which can protect the overcharge, overdischarge, overcurrent and overvoltage.
  • Finished product testing: The finished battery finally needs to go through a number of tests to confirm that the performance is stable and meets the standards before it is packaged and shipped.
