Product Description

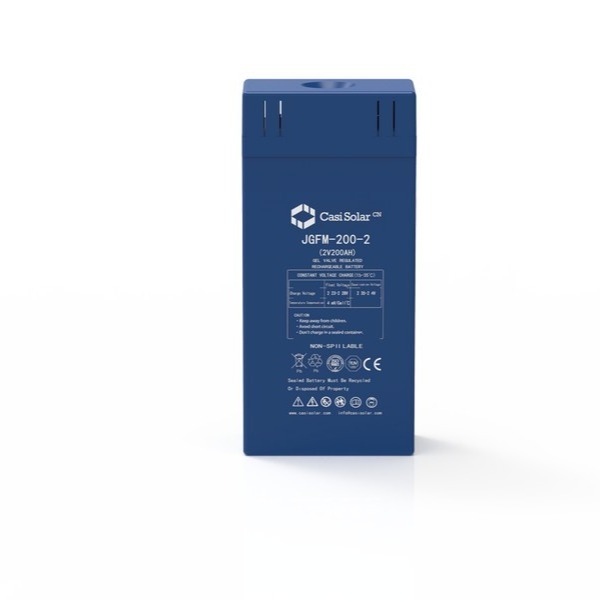

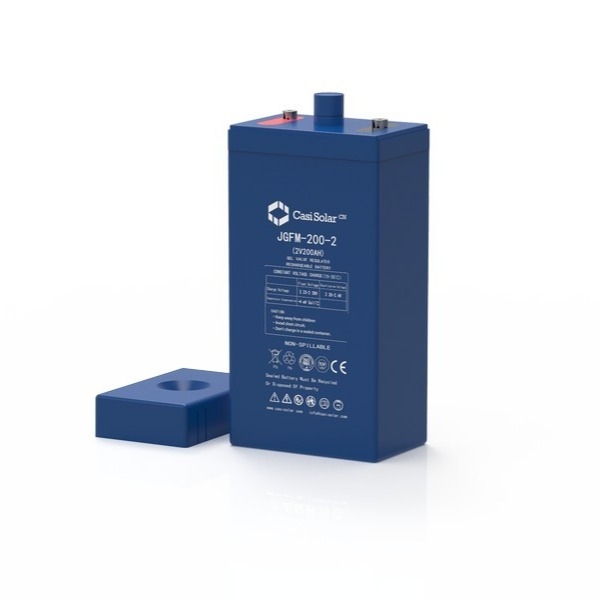

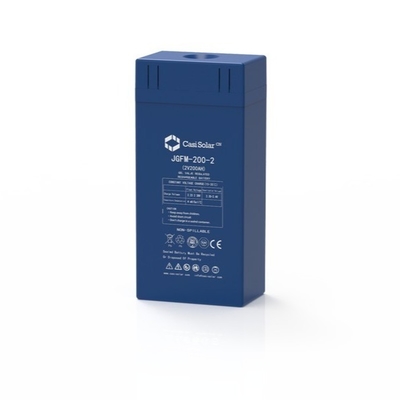

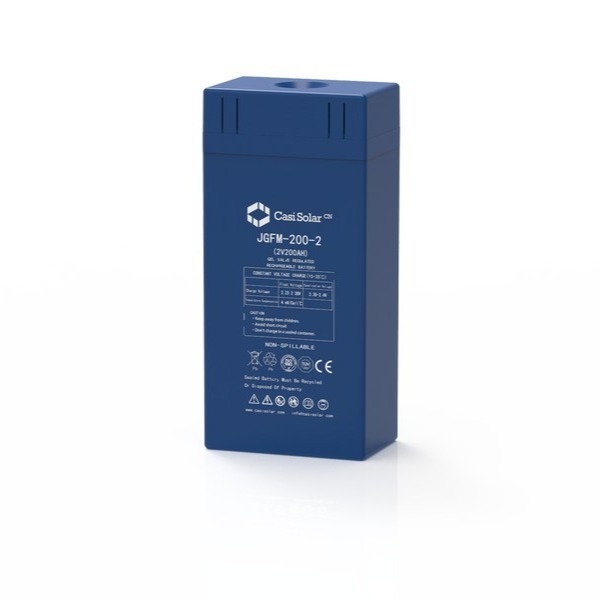

Marine 2 Volt 200ah Gel Deep Cycle Battery Rechargeable ABS Plastic Cover
The CASISolar‘s 2 Volt 200ah Gel Deep Cycle Battery is used in UPS, Broadband, Electric powered vehicles, Electric powered toys, Vacuum cleaners, Medical Equipments, Goof cars and buggies, Wheelchairs, PVs, solar systems, control systems, power systems, wind energy systems, telecommunication /communication systems &, etc.
Technical Data Of 2 volt gel deep cycle battery
| Product Name |
2 Volt 200ah Gel Deep Cycle Battery |
| Reted Voltage |
2V |
| Capacity(10hr) |
200ah |
| N.W. |
13.5Kg |
| Size(H*L*W) |
365*173*111mm |
| Max.Discharge Current |
30I10A (3min) |
| Self-Discharge(25℃) |
<3%/month |
| Designed life |
10-12 Years |
| Using Temperature |
Discharge: -45℃～50℃
Charge: -20℃～45℃
Storage: -30℃～40℃
|
|
Recommended Using
Temperature
|
15℃～30℃ |
| Charge Voltage (25℃) |
Float Charge: 13.5V-13.8V
Average Charge: 14.4V-14.7V
|
| Max.Charge Current |
≤0.25C10 |
| Charge Mode(25℃) |
Float Charge:13.65±0.15V/Cell
Temperature Compensation Coefficient :± 18 mV/Cell ℃
Cycle Charge:14.7±0.3V/Cell
Temperature Compensation Coefficient: ± 30 mV/Cell ℃
|
| Cover Material |
ABS Engineering Plastic |
| Cycle life |
105 % @ 40℃
|
| DOD cycle |
100%DOD 572times
50%DOD 1485 times
30%DOD 2406times
|
| Warranty |
3 Years |
Features Of 200ah Gel Deep Cycle Battery
|
From material selection to delivery
We master the entire production process and
strictly control the quality of each component to ensure quality.
|
 |
|
Purest lead ingot
Lead ingot: Pb-1
Lead content ≥ 99.994%
|
|
Electrolyte
The electrolyte of Casisolar’s 2 Volt 200ah Gel Deep Cycle Battery use patented formula and the main component of nano-gelled imported from German, which has the consistency and appearance of petroleum jelly. Nano gel helps batteries have stable performance at high and low temperature and 5 years longer than AGM battery.
|
|
|
Plate
The plate of Casisolar’s 2 Volt 200ah Gel Deep Cycle Battery is usually thicker, pasted flat type with patent formula ensure stronger ability to recover from deep discharging. This also do a great help of batteries service for two years longer.
|
|
Grid
Casisolar’s 2 Volt 200ah Gel Deep Cycle Battery use special design of radioactive grid structure, lead-tin alloy helps greater ability of anti-corrosion. This help our batteries service two years longer and other gel. Batteries..
|
|
|
Separator
You will always find that the separator in our batteries are in double quantity, the material should be updated long and superfine fiber separator with higher absorptive and lower resistance, which helps batteries service longer.
|
NOTE
· We recommend only using consistent battery types. DO NOT mix new and used batteries together as it will reduce overall performance .
· To avoid cycle-life shortening, we recommend not discharging the battery below 40%.
· It is highly recommended to use a battery balancer to extend the battery service life when multiple batteries are connected in series and/or in parallel.
· We highly recommend installing the battery upright. It is allowed to install the battery on its side only if there are special reasons for doing so.
DO NOT install the battery upside down.
If you have any questions regarding this product, please call us at +86 29 88819394 or or info@casisolar.com for troubleshooting assistance.
PACKAGE INCLUDES
| 2V 200ah Deep Cycle Gel Battery (1x) |
M8 Terminal Bolts(2 x) |
Manual(1x) |
|
|
|
FAQ
1. How many life cycles does this GEL battery have?
This CASISolar 2 Volt 200ah Gel Deep Cycle Battery enables more than 1000 charge/discharge cycles at 50% DOD (Depth of Discharge) in cyclic applications.
2. Will the battery come with the terminals? And if not, what's the size of the connector terminals?
Yes, it comes with two copper screw terminals. The size is M8 x 1.25 x 16 mm.
3. How to properly store the Gel battery?
Store it in a dry and cool place at -30℃~50℃. Charge it to full before delivery and recharge after three months.
4. What is the maximum charge current? Optimal charge current?
The max charge current for this battery is 60A. The optimal charge current should be based on whatever the charge controller will give it as the optimal charges based on the current level of the battery. An intelligent battery charger or solar charger will take care of the optimal charge for the battery.
5. Is this battery suitable for service indoors in a living/working area?
Yes, it is. This 12V 38ah Deep Cycle Gel Battery is suitable for on-grid and off-grid applications so that you can use it on your marine, RV/Van, off-grid, home backup power supplies, emergency power systems, medical devices, and more. Unlike a Flooded battery, it does not generate any toxic hydrogen gas during working, so it's a safer and cleaner battery. You can use it in a living/working area without any worries.
