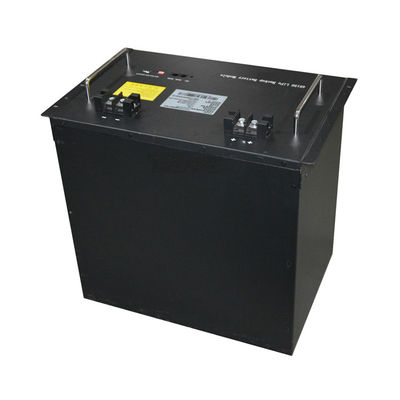

LiFePO4 Lithium Ups Battery Backup

Product Details:
Place of Origin: China
Brand Name: Licloud
Certification: CE/ROHS
Model Number: LFP48150
Payment & Shipping Terms:
Minimum Order Quantity: 1 piece
Price: Negotiable
Packaging Details: According to customer's requirement
Delivery Time: 15-20 working days
Payment Terms: T/T, Western Union, L/C
Supply Ability: 1000 pcs per week

Detail Information

Product Name: Energy Storage Lithium Battery Standard Voltage: 48volt
Battery Capacity: 150Ah Cycle Life: 6000times
Dimensions: 482*400*309mm Weight: 71.0kg
Application: Energy Storage System/UPS Battery Type: LiFePO4 Lithium Battery
BMS Protection: All Functions Working Temperature: -10℃~45℃
High Light:

LiFePO4 lithium ups battery backup


7200 WH lithium ups battery backup


LiFePO4 lithium battery backup power

Product Description

Energy Storage Lithium Battery 48v 150ah 7200WH Solar System Long Service Life



The 48V energy storage lithium battery, compared with lead-acid batteries, has the advantages of small size, light weight, strong temperature adaptability, high charging and discharging efficiency, safety and stability, long service life, energy saving and environmental protection.

Energy Storage Lithium Battery is the future development trend of backup power technology under the conditions of small and medium-sized backup power supply and harsh environment.


Model of battery pack CI48V 150AH -7200WH
Nominal voltage 48V
Rated capacity 150AH
Rated reserved energy 7200WH
Standard charging current 0.3C
Maximum continuous charging current 0.5C
Minimum continuous charging current 0.1C
Total charging cut-off voltage 58.4V
Cut-off voltage of charging monomer 3.65V
Standard discharging current 0.5C
Maximum continuous discharging current 1C(150A)
Cut-off voltage of discharging monomer 2.5V
Charging temperature range -5℃~55℃
Discharging temperature range -20℃~65℃
Dimension (W×D×H) 482*400*310mm
(excluding hanger and amphenol connector)
Weight 71kg
Compound mode 15 strings 1parallel
Storage temperature -20℃~45℃
Differential pressure Differential pressure at the discharging end (2.5V for monomer) ≤300mV
Differential pressure at the charging end (3.65V for monomer)≤300mV



LiFePO4 Lithium Ups Battery Backup 0


Product Features

  • Product Name: Energy Storage Lithium Battery
  • Standard maintenance-free design, to meet the 19-inch communication cabinet installation
  • Built-in BMS with a variety of protection and communication functions to ensure the reliability of the battery pack performance and achieve long-distance monitoring of battery data.
  • Flexible configuration, support parallel expansion
  • Fast charging performance is excellent

Main Advantages

  • Product Name: Energy Storage Lithium Battery
  • Higher volume specific energy and weight specific energy, and no special requirements for space and weight bearing when installed, which greatly reduces the rental cost of the site.
  • Long cycle life of lithium iron single cell batteries of more than 6000 cycles.
  • Superior temperature characteristics: the ambient working temperature can reach -20~+60℃ (recommended use temperature; -15~+50℃), which greatly reduces the equipment acquisition cost and power consumption cost.


  • Home Energy Storage
  • Industrial Energy Storage
  • Wind power system
  • Outdoor Macro Stations

Production Process

  • Li-ion battery cell sorting cabinet: all incoming cells are subjected to secondary sorting to ensure the full capacity of the battery.
  • Sorting pairing: each cell is sorted to ensure the consistency of the voltage and internal resistance of the cells in the same battery pack, which effectively improves the stability of the battery.
  • Automatic spot welding: Use automatic spot welding machine to spot weld the positive and negative electrodes of the battery pack, which is efficient and stable without desoldering.
  • Welding BMS: Welding and installing BMS for each battery pack, which can protect the overcharge, overdischarge, overcurrent and overvoltage.
  • Finished product testing: The finished battery finally needs to go through a number of tests to confirm that the performance is stable and meets the standards before it is packaged and shipped.
