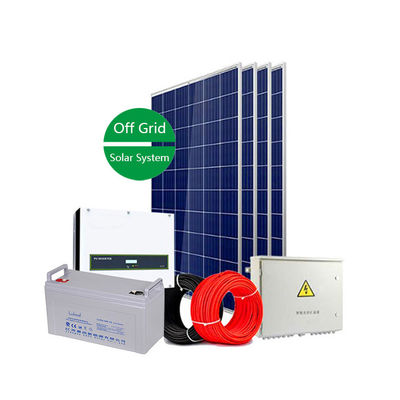

3kw Off Grid Solar Power System

Product Details:
Place of Origin: China
Brand Name: Licloud
Certification: TUV/CE/ISO14001/ISO9001
Model Number: LOG-3KW
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: According to customer's requirement
Delivery Time: 15-20 working days
Payment Terms: T/T, Western Union, L/C
Supply Ability: 1000 sets per week

Detail Information

Product Name: Off Grid Solar System Host Output Capacity: 3000w
Output Frequency: 50~60Hz Output Voltage: 110V/220V/230V/240V/380V/400V
Inverter Type: Pure Sine Wave Solar Panel Type: Monocrystalline Silicon
Controller Type: MPPT Battery Type: LiFePO4 Lithium Battery 48V
Remote Monitoring: Optional Battery Capacity: 1920wh
High Light:

3kw Off Grid Solar Power System


48vdc Off Grid Solar Power System


48vdc off grid solar system

Product Description

3000w 48vdc 220vac 380vac Off Grid Solar System Whole Set Residential
Off grid solar systems are widely used in areas without electricity, power instability, islands, communication base stations and inconvenient wiring for street lights or monitoring systems. The photovoltaic array converts solar energy into electrical energy when there is light, and stores the electricity for the battery pack through the solar controller; when there is no light, the battery pack discharges through the solar controller to supply power to the DC load, and can also reverse the discharge into AC power through the inverter to supply power to the AC load.

System type Products Description Quantity Unit
3kw off grid solar system SP-320W Solar panel 320W Mono 3 pcs
Controller Solar charge controller 48v 1 pcs
Inverter Pure sine wave solar inverter 3000w 48vdc 230vac 1 pcs
Lithium batteries LiFePO4 lithium batteries 48V50Ah 1 pcs
Battery rack Easy to operate, install, and transport 1 set
Solar panel mounting bracket Hot-dip galvanized, aluminum alloy 1 set
Accessory DC cables, PV connectors 1 set

3kw Off Grid Solar Power System 0

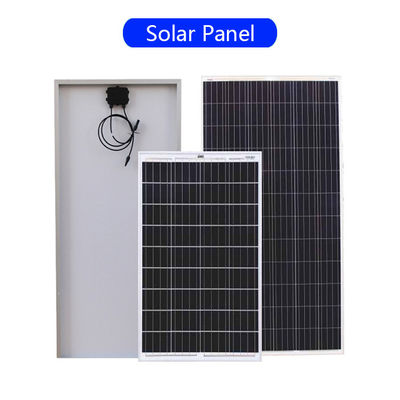

Solar panel features

  • Good weak light performance (morning, evening, cloudy day) verified by authoritative third party test
  • With high efficiency polycrystalline / monocrystalline silicon chip, power generation is more stable and low attenuation

  • The use of anti ash and easy to clean coated glass has high power generation efficiency in the later stage

Solar inverter features

  • Multiple protection functions such as undervoltage, overload, over current, high temperature, high voltage and short circuit ensure the safety of products

  • Intelligent LCD output voltage, frequency, battery capacity, fault, overload, load, etc

  • The process of combination of patch and module has more stable performance and can be started for 24 hours

Solar charge controller features

  • LCD graphic display of photovoltaic power generation data, simulation of power generation process

  • A variety of load working modes can be set to adapt to different working situations

  • Intelligent battery management function to extend battery life

  • Advanced MPPT tracking algorithm, tracking efficiency as high as 99%, compared with the ordinary PWM algorithm, power generation efficiency can be improved by about 20%

Solar batteries features

  • The performance of deep discharge cycle is excellent and the reliability of the system is improved effectively
  • Excellent recovery performance after over discharge
  • Low water loss rate

  • Super long service life

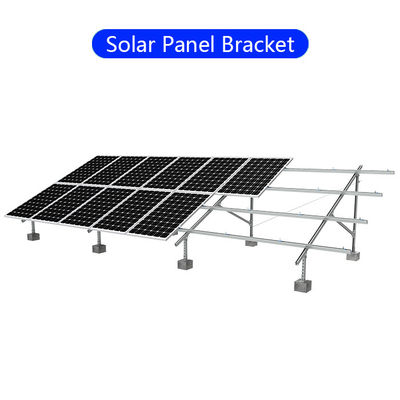

Solar panel bracket features

  • The whole system is made of aluminum alloy, stainless steel accessories and hot-dip galvanized steel, which has outstanding anti-corrosion and anti rust ability for outdoor use
  • Less installation parts, high pre installation in the factory, no cutting or drilling on site, no welding, greatly reducing the installation time on site
  • High density structure design makes more rational use of space

PV combiner box features

  • Anti counter current protection, no sun at night, battery power to solar panels counter current, protect solar panels from damage
  • The special high voltage lightning protection device for photovoltaic greatly improves the safety performance of the whole system
  • High voltage fuse protection and counterattack protection are added to single channel photovoltaic array

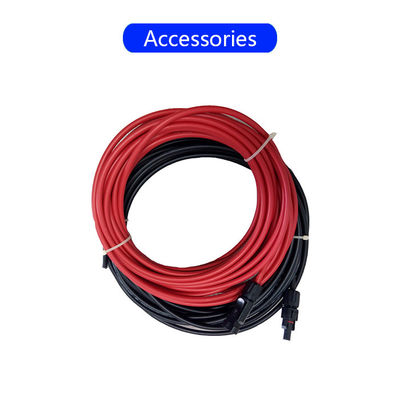

Solar cable features

  • It greatly improves the conductivity and reduces the line loss
  • Dedicated PV adapter, waterproof grade IP67
  • Special photovoltaic cable, after special irradiation treatment, can be used outdoors for more than 25 years

Main advantages:

  • Type: Off Grid Solar System
  • Five protection functions of under voltage/short circuit/over voltage/over load/over temperature

  • LCD intelligent display

  • Automatic conversion, automatic recovery and unattended functions

  • Factory direct sales at affordable prices

  • Full installation technical guidance

  • 3 years warranty, lifetime after-sales service


  • Type: Off Grid Solar System
  • High efficiency MPPT charging mode, three-stage charging control

  • Perfect system protection functions include: overcharge, over discharge, overload, short circuit, anti-reverse connection, lightning strike, etc.

  • Use imported IGBT/MOSFET as electronic switch, without any mechanical switch

  • LCD liquid crystal display system parameters of the current operating status

  • New SOC calculation, accurate display of real-time battery capacity

Design of Off Grid Solar System

  • According to the load size and type, single-phase 220V or three-phase 380V, the rated power of off grid inverter is determined.
  • According to the discharge time of the energy storage battery required by the load, determine the size of the energy storage battery (such as how many kwh to store).
  • According to the load power consumption (how many kilowatt hours of electricity) and the local sunshine situation, select the board with high power.
  • The size of charge controller is selected according to the size of photovoltaic panel and battery voltage.
  • Supports, cables, etc. (installed on the roof or floor).


  • Type: Off Grid Solar System
  • Transportation field such as beacon light, traffic/railway signal light, traffic warning/sign light, street light, high altitude obstacle light, highway/railway wireless phone booth, unattended road shift power supply, etc.

  • Communication/Communication field: solar unattended microwave relay station, fiber optic cable maintenance station, broadcasting/communication/paging power supply system; rural carrier phone PV system, small communication machine, soldier GPS power supply, etc.

  • Oil, marine, meteorological field: solar power system for cathodic protection of oil pipelines and reservoir gates, living and emergency power supply for oil drilling platforms, marine detection equipment, meteorological/hydrological observation equipment, etc.

  • Solar architecture combines solar power generation with building materials, making the future of large buildings to achieve power self-sufficiency, is a major future development direction.
