2V 3000Ah Sealed Lead Acid Agm

Product Description

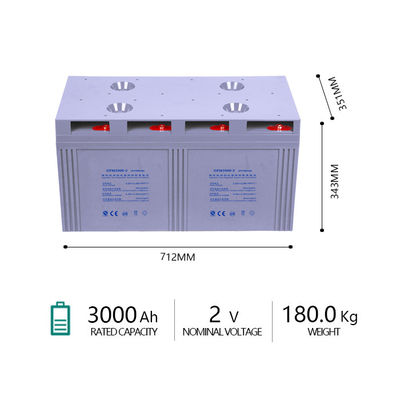

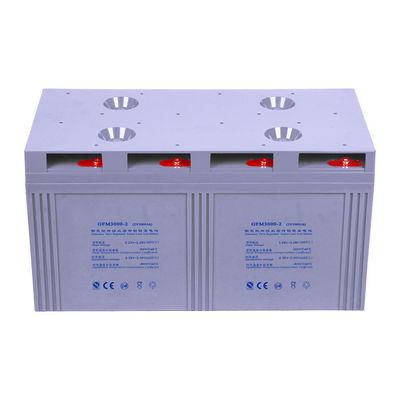

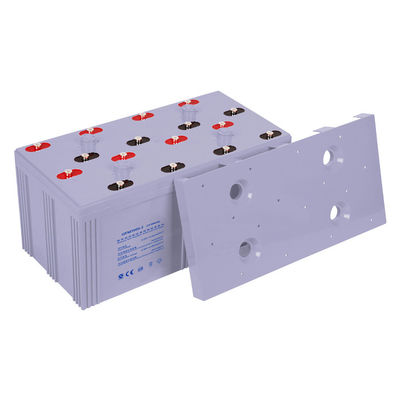

2V 3000Ah Valve Regulated Lead Acid Battery AGM Rechargeable Backup Power

Description

GFM series Valve Regulated Lead Acid Battery is specially designed for frequent cyclic performance. By using the highest purity raw material and special additives, the GFM series Valve Regulated Lead Acid Battery improves 7% charge acceptance than ordinary ones, and provides more consistent performance with longer service life.

Valve Regulated Lead Acid Battery can be widely used in backup power supply of telecommunication, mobile, Unicom, railway and other communication and signal systems, backup power supply of power system and nuclear power station, energy storage system of energy and wind power generation, and backup power supply of ups and emergency lighting.

Specification

Valve Regulated Lead Acid Battery Characteristics Curve





Technical Parameters

• Type: Valve Regulated Lead Acid Battery
• Capacity range: 100Ah-3000Ah
• Voltage class: 2V
• Float charge voltage: 2.25V-2.3V
• Equalized charge voltage: 2.4V-2.45V
• Long working life: 10 years
• Low self-discharge rate: ≤3%/month
• High sealed reaction efficiency: ≥99%
• Uniform and consistent floating charge voltage: ≤±50mV
• Compact structure and high specific energy
• Good performance in high current discharge


Features

• Type: Valve Regulated Lead Acid Battery
• The absorption type ultra-fine glass fiber separator has low internal resistance and good high rate discharge performance
• The positive and negative lead paste with special additives has high utilization rate of active materials and strong charge acceptance ability
• Using high purity electrolyte and special additives, self discharge is small
• The special combination labyrinth pole air sealing structure and welding process are adopted to ensure the safety and reliability of sealing.
• The valve body is made of flame retardant ABS material, the valve core is of columnar structure, and double acid mist filters have the functions of accurately controlling valve opening and closing pressure, flame retardant and acid mist filtering.

Advantages

• Type: Valve Regulated Lead Acid Battery
• SLA Sealed Lead Acid Battery: 10 years design life
• TLS patented technology, sealed and reliable
• Uniquely designed monoblock structure, complete series of models, greater choice of space
• Mature technology and stable operation
• Designed for high current and high power applications, high energy density
• Easy maintenance, low TCO cost
• High safety, reliability and stability

Application

• Portable instruments, meters
• Solar and wind energy systems
• Communication and electrical equipment
• Emergency lighting equipment
• Warning system
• Various distance measuring devices

Compliant standards

• Type: Valve Regulated Lead Acid Battery
• IEC60896-2-1995
• TD/T 799-2010
• GB/T 19638.2－2005
• GB/T 22473-2008
• YD/T 1360-2005
• JISC 8704-2:1999
• Passed ISO9001.ISO14001, GB/T28001-2001, CE, TLC, CGC certificate
