VRLA Agm Deep Cycle Battery

Product Description

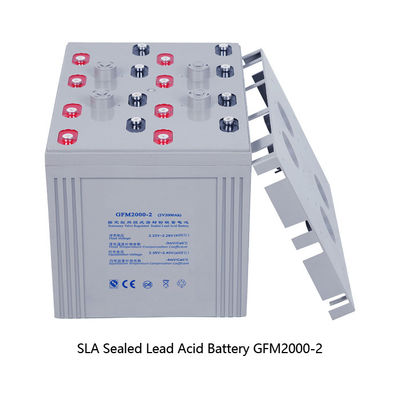

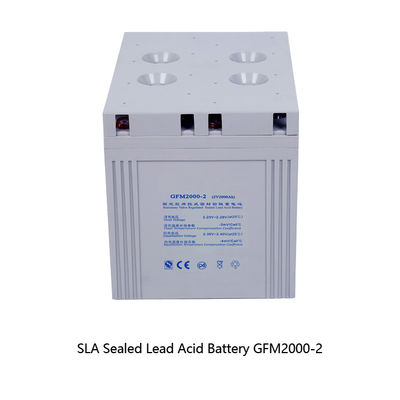

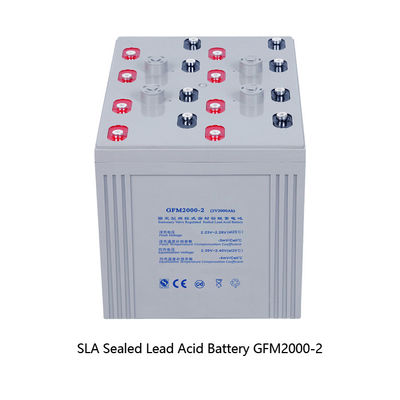

2V 2000Ah Valve Regulated Lead Acid Battery VRLA Deep Cycle Solar System

Description

GFM series Valve Regulated Lead Acid Battery is specially designed for frequent cyclic performance. By using the highest purity raw material and special additives, the GFM series Valve Regulated Lead Acid Battery improves 7% charge acceptance than ordinary ones, and provides more consistent performance with longer service life.

Valve Regulated Lead Acid Battery can be widely used in telecommunications, mobile, Unicom, railway, ships and other communications, signal system backup power, power systems, nuclear power plant backup power, solar, wind power generation energy storage system, and UPS, emergency lighting and other backup power.

Specification

Valve Regulated Lead Acid Battery Characteristics Curve





Technical Parameters

• Type: Valve Regulated Lead Acid Battery
• Capacity range: 100Ah-3000Ah
• Voltage class: 2V
• Float charge voltage: 2.25V-2.3V
• Equalized charge voltage: 2.4V-2.45V
• Long working life: 10 years
• Low self-discharge rate: ≤3%/month
• High sealed reaction efficiency: ≥99%
• Uniform and consistent floating charge voltage: ≤±50mV
• Compact structure and high specific energy
• Good performance in high current discharge


Features

• Type: Valve Regulated Lead Acid Battery
• Separator: improved AGM separator with higher absorptive and lower resistance
• Terminal: two or more types terminals are convenient for selection
• Battery case: high strength ABS
• Green solution: environmental protection features such as cadmium-free, non-spillable
• The electrode plate adopts rectangular large grid block structure and proprietary 4BS formation technology, which improves the specific energy of the battery and extends the cycle life
• The positive plate grid adopts special multi alloy, which effectively prevents the early capacity loss of the battery and provides long life for float charging and cycling.
• Special additives are added to the positive and negative lead paste for high utilization of active materials and strong charging acceptability

Advantages

• Type: Valve Regulated Lead Acid Battery
• SLA Sealed Lead Acid Battery: 10 years design life
• TLS patented technology, sealed and reliable
• Uniquely designed monoblock structure, complete series of models, greater choice of space
• Mature technology and stable operation
• Designed for high current and high power applications, high energy density
• Easy maintenance, low TCO cost
• High safety, reliability and stability

Application

• UPS backup power supply, emergency lighting.
• Alarm and fire fighting and security systems.
• Stabilization of power grid, communications, signal system backup power
• UPS/EPS systems
• Communication / Power Systems
• Emergency lighting systems
• Fire and security alarm systems

Compliant standards

• Type: Valve Regulated Lead Acid Battery
• IEC60896-2-1995
• TD/T 799-2010
• GB/T 19638.2－2005
• GB/T 22473-2008
• YD/T 1360-2005
• JISC 8704-2:1999
• Passed ISO9001.ISO14001, GB/T28001-2001, CE, TLC, CGC certificate
